| Model NO. | LED 035-PIR |
| Display Type | LED Enclosure Lamp |
| IP Class | IP 68 |
| Warranty | 3 Years |
| Operating Temperature | -40 to +80°C |
| Package Size | 57.00cm * 30.00cm * 18.00cm |
| Gross Weight | 12.000kg |

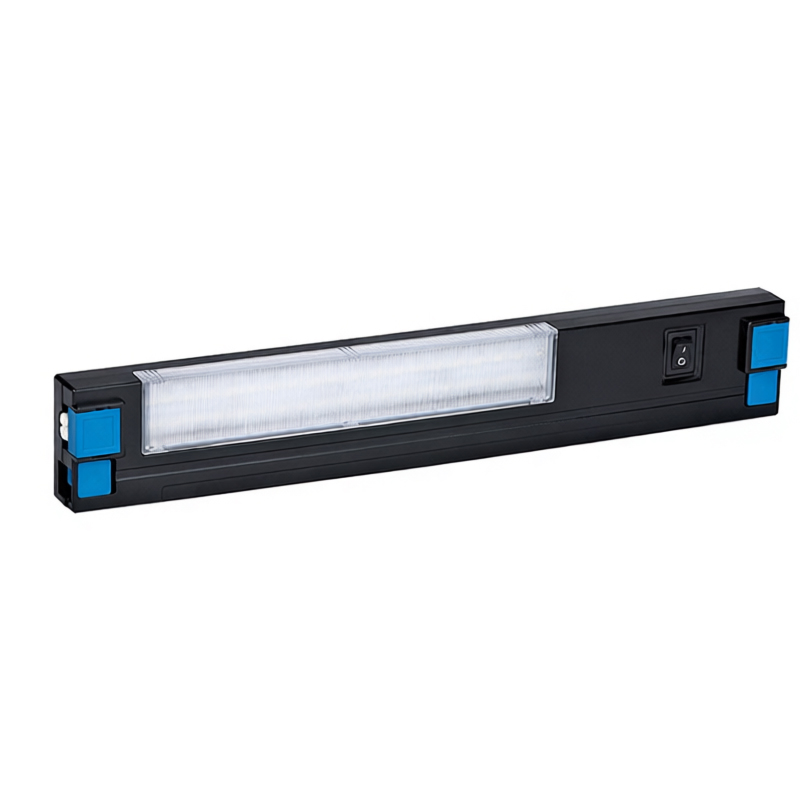

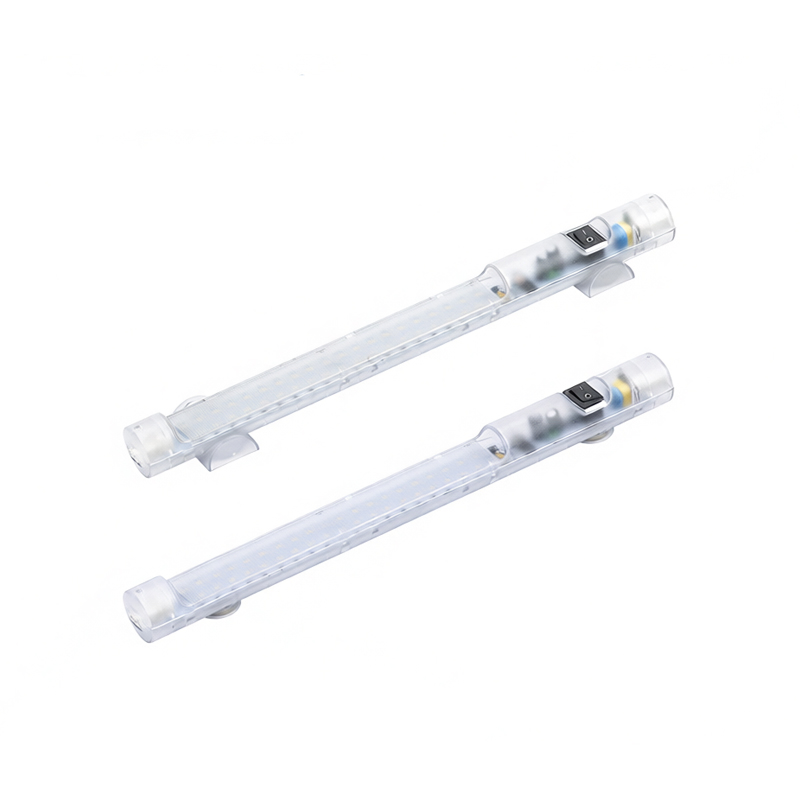

The LED 035-PIR lamp series is ideal for all types of panels and enclosures, especially where space is limited. Utilizing advanced LED technology, these lamps offer an exceptionally long service life and high energy efficiency.
Operation Process: When connected to power, the unit performs a 5-second self-test. The light activates upon detecting human movement. If no further motion is detected, the light automatically switches off after approximately 5 minutes.
| Power Consumption | Max. 5W |
| Luminosity | 400Lm at 120° (Equivalent to 95W light bulb) |
| Lamp Type | LED, Daylight color (6,000K to 7,000K) |
| Service Life | 60,000 hours at +20°C |
| Mounting Options | Magnet fixing, Screw fixing (M5), or Clip fixing (M6) |
| Protection Class | IP20 / II (Double insulated) |

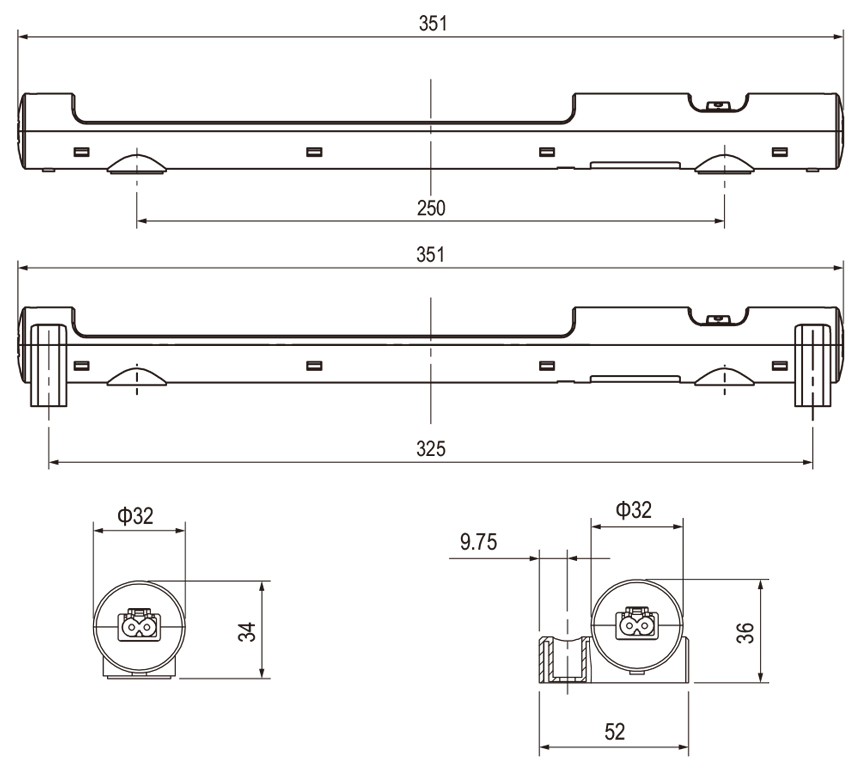

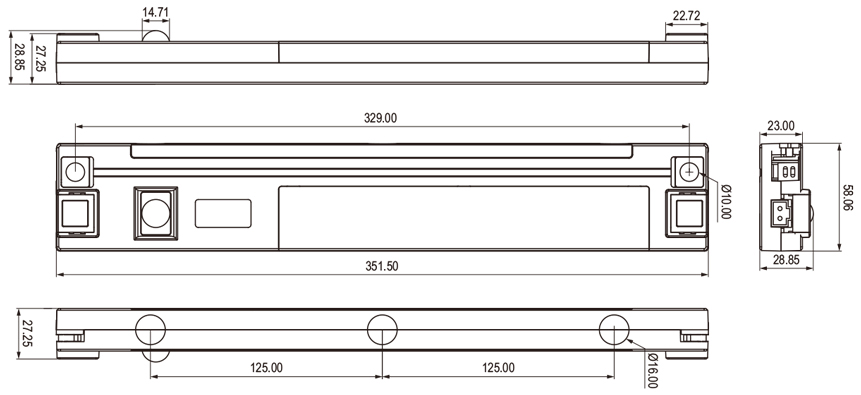

| Dimensions | Compact design for enclosure panels |
| Art. No. | Fixing Type | Switch Type | Operating Voltage |
|---|---|---|---|
| 035M-PIR | Magnet fixing | PIR Movement Sensor | 48-265VAC/DC |
| 035S-PIR | Screw fixing | PIR Movement Sensor | 48-265VAC/DC |
| 035SM-PIR | Magnet + Screw fixing | PIR Movement Sensor | 48-265VAC/DC |
