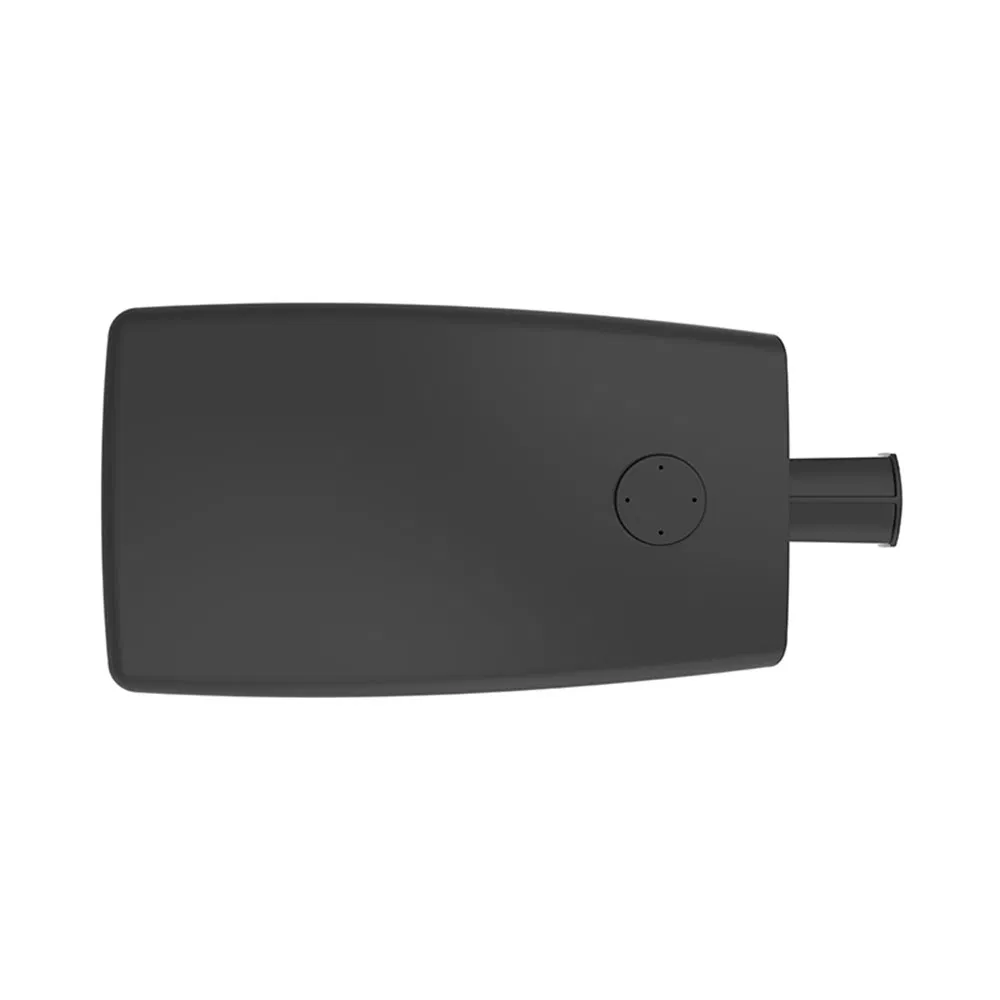

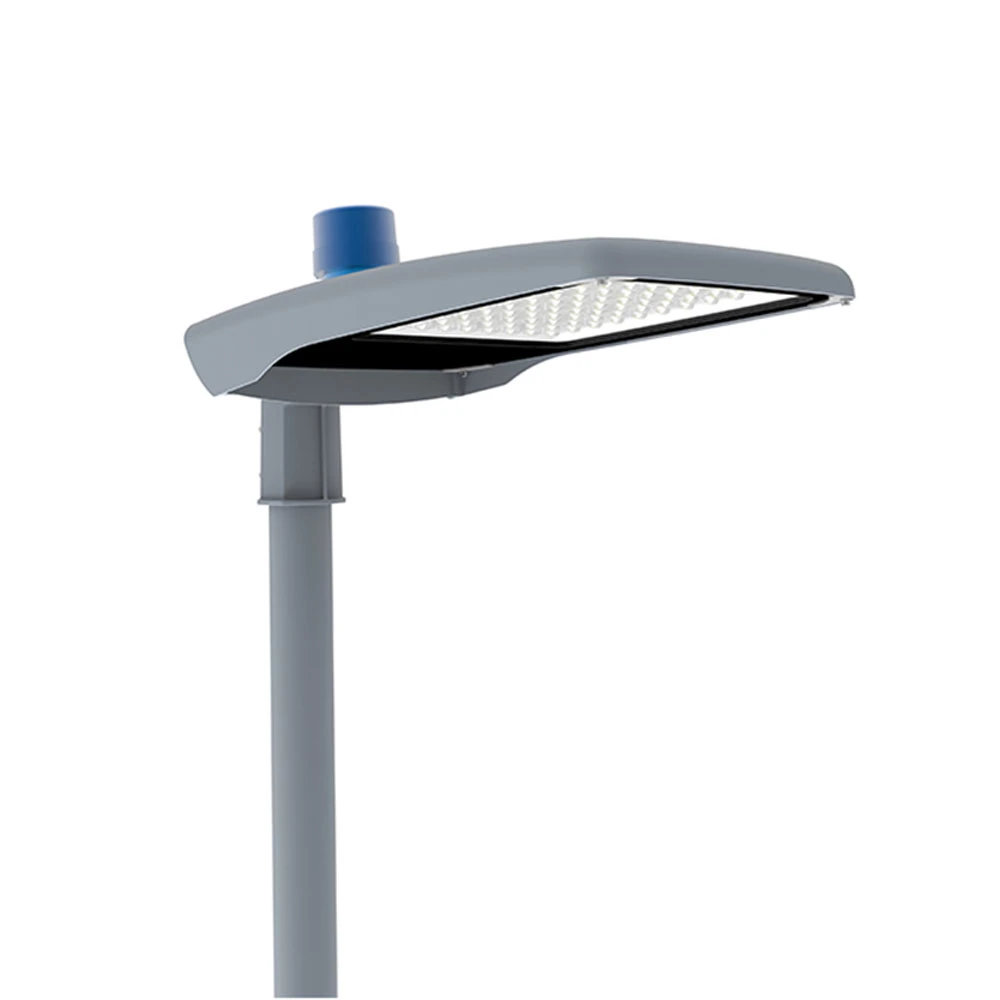

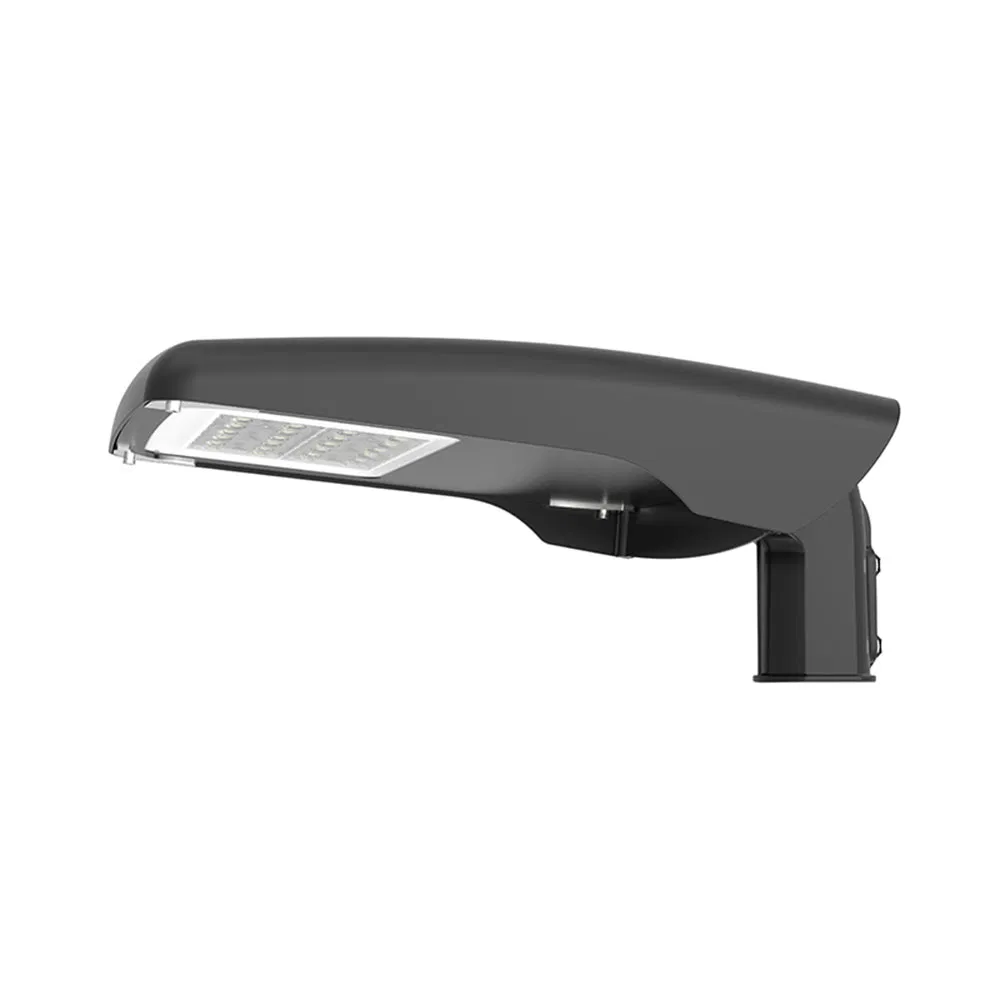

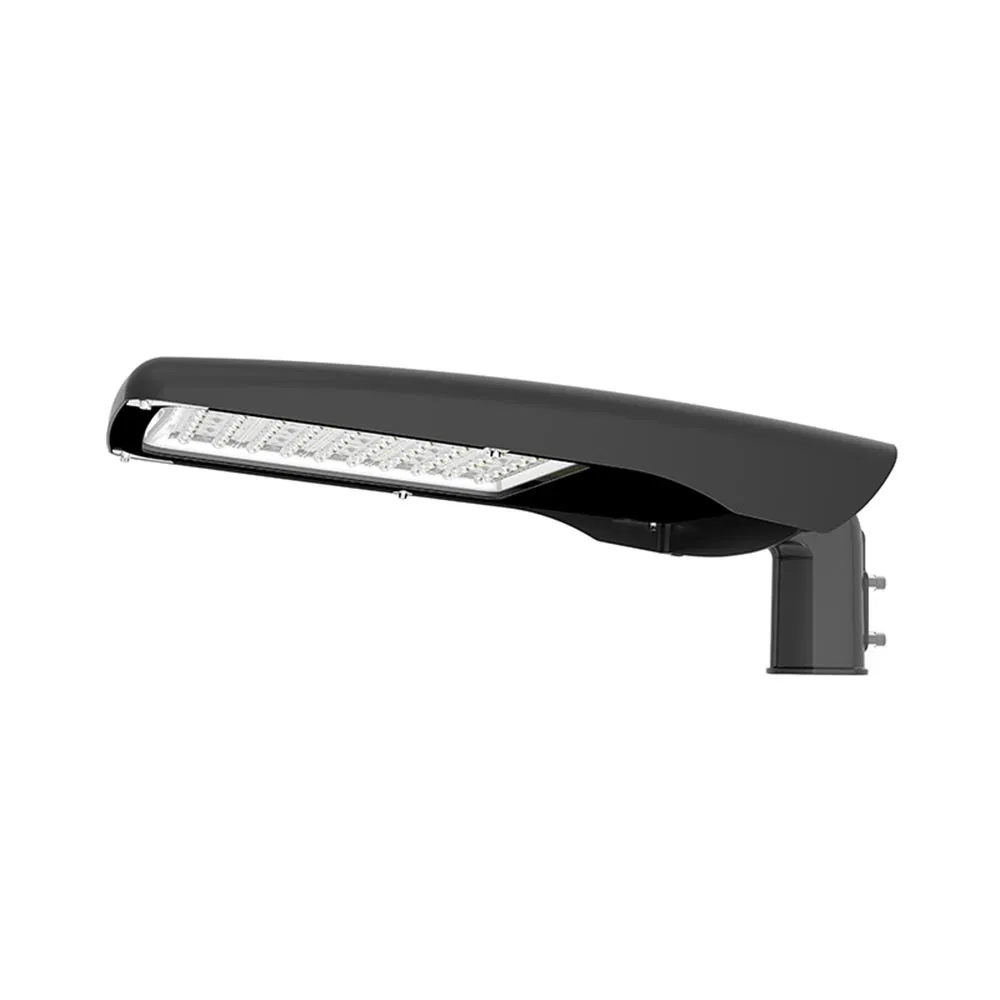

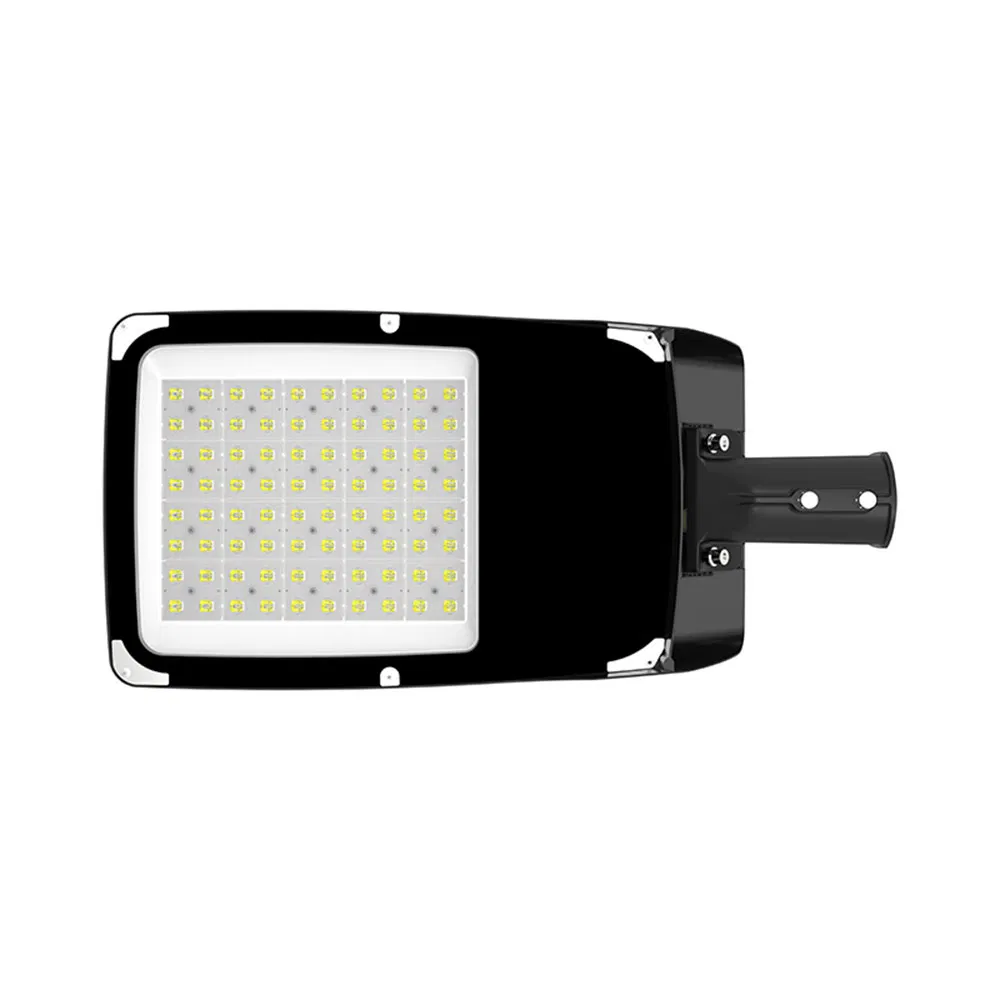

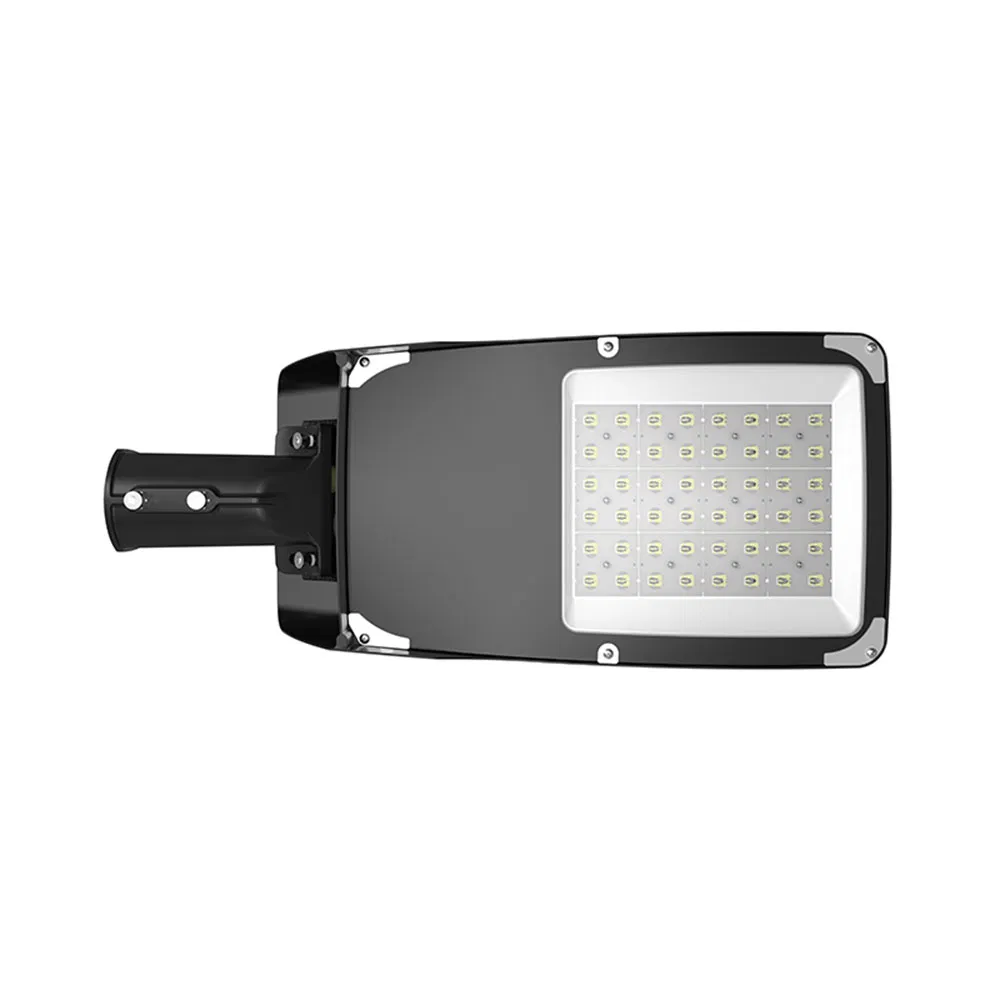

The LED Street Light YASL-24 is a high-performance lighting solution designed for modern infrastructure. Manufactured from high-pressure die-casting aluminum, this luminaire offers superior durability and thermal management.

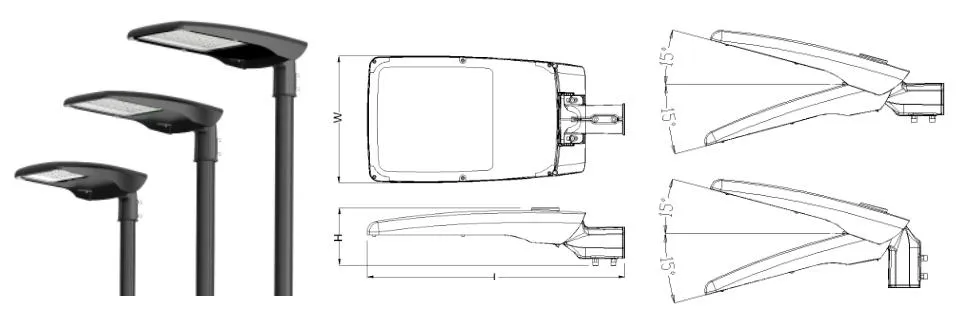

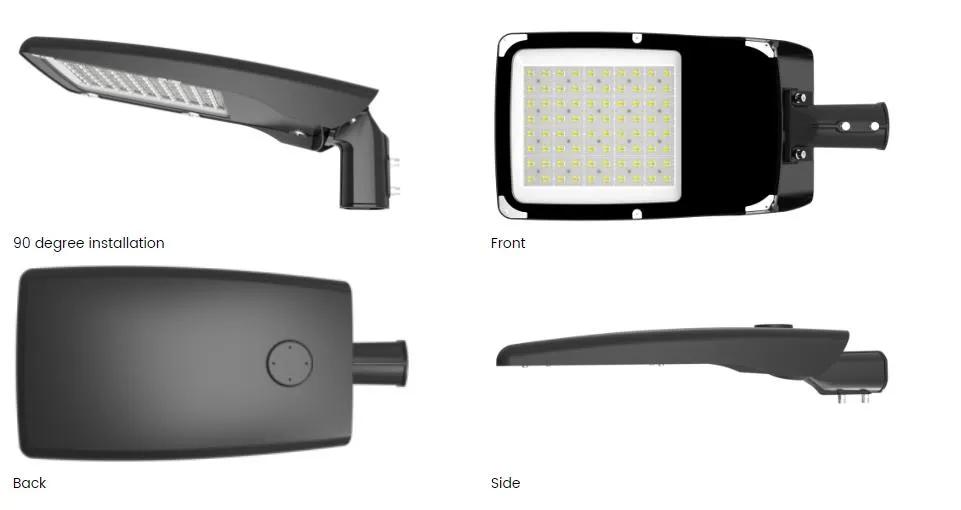

Installing Ways: Both Horizontal and Vertical mounting options are available with an adjustable angle range from -15° to +15°. This series is available in three sizes to meet various lighting requirements.
| Product Code | YASL-24-60 | YASL-24-120 | YASL-24-200 |
|---|---|---|---|
| Input Wattage | 60W | 120W | 200W |
| Luminous Flux | 7800-9000lm | 15600-18000lm | 26000-30000lm |
| Input Voltage | AC90~305V | ||
| Color Temperature | 2700~6500K | 16800~18000K | 2700~6500K |
| LED Lifetime | 50000h | ||
| Net Weight | 3.3kgs | 4.5kgs | 6.2kgs |
| Packing Size (mm) | 520*310*170 | 630*310*170 | 680*360*175 |
| Physical Requirements | ||
| Housing Type | Heavy-duty pressure die-cast aluminium alloy | ISO 3522 |
| IP/IK Protection | IP66 / IK08 | IEC 60529 / 62262 |
| Salt Spray Test | 1000 hours resistant | EN/ISO 9227 |
| LED & Optics | ||
| LED Source | Osram / CREE | High Power |
| Lumen Efficacy | ≥ 160lm/W (25°C ambient) | LM-79 |
| Performance | ||
| Surge Protection | 10KV | Built-in |
| Power Factor | >0.95 | IEC 60598 |
